Place of Origin:
China
Brand Name:
Customized by customer
Certification:
FC, CE, ISO
Model Number:
SUN 66M-H12

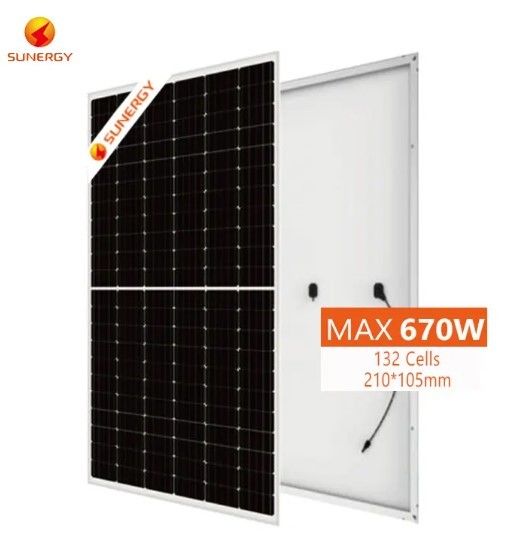

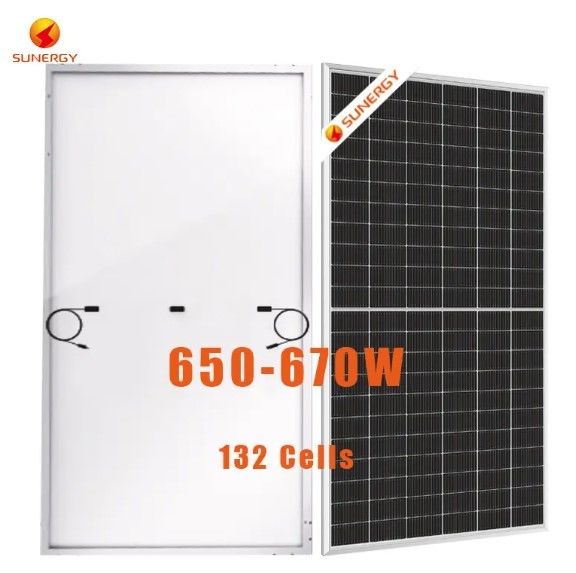

540W -660W solar panel
|
Electrical Characteristics
|
||||||
|
Module Type
|
540W
|
545W
|
550W
|
|||
|
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
|
Maximum Power At STC(Pmax)
|
540W
|
406.8W
|
545W
|
410.5W
|
550W
|
414.3W
|
|
Short Circuit Current(Isc)
|
13.70A
|
11.07A
|
13.76A
|
11.12A
|
13.82A
|
11.17A
|
|
Open Circuit Voltage(Voc)
|
49.8V
|
46.5V
|
50.0V
|
46.7V
|
50.2V
|
46.9V
|
|
Maximum Power Current(Impp)
|
12.86A
|
10.49A
|
12.92A
|
10.54A
|
12.98A
|
10.58A
|
|
Maximum Power Voltage(Vmpp)
|
42.0V
|
38.8V
|
42.2V
|
39.0V
|
42.4V
|
39.1V
|
|
Module Efficiency
|
20.92%
|
21.10%
|
21.29%
|
|||
|
Power Tolerance
|
0～+5W
|
|||||
|
Maximum System Voltage
|
VDC 1500V
|
|||||
|
Maximum Series Fuse
|
25A
|
|||||
|
Increased Snowload Acc.to lec 61215
|
5400Pa
|
|||||
|
Operating Temperature
|
-40～+85℃
|
|||||
|
Number of Bypass Diodes
|
3
|
|||||
|
Norminal Operating Cell Temperature(Noct)
|
45℃±2℃
|
|||||
|
Temperature Coefficient of Pmax
|
-0.35%℃
|
|||||
|
Temperature Coefficient of Voc
|
-0.27%℃
|
|||||
|
Temperature Coefficient of Isc
|
0.05%℃
|
|||||
|
STC (standard test environment): irradiance 1000W/m², battery temperature 25°C, spectrum AM1.5
|
||||||
| NOCT (normal battery operating temperature): irradiance 800W/m², ambient temperature 20°C, spectrum AM1.5, wind speed 1m/s.
|
||||||
