Place of Origin:
China
Brand Name:
Growatt
Certification:
FC, CE, ISO
Model Number:
Mic 750-3300tl-x
Hybrid Inverter 10Kva 40Kva
|
Output Type
|
Single
|
|
Type
|
DC/DC Converters, DC/AC Inverters
|
|
Inverter Efficiency
|
0.976
|
|
Place of Origin
|
Jiangsu, China
|
|
Brand Name
|
SUNKET
|
|
Model Number
|
MIC 750~3300TL-X
|
|
Input Voltage
|
500V/550V
|
|
Output Voltage
|
230V(180-280V)
|
|
Output Current
|
3.6/4.8/7.1/9.5/11.9/14.3A
|
|
Output Frequency
|
50Hz/ 60Hz
|
|
Size
|
274/254/138mm
|
|
Certificate
|
CE/RHOS/IEC
|
|
Warranty
|
5 years
|
|
Weight
|
9.1kg
|
|
Product name
|

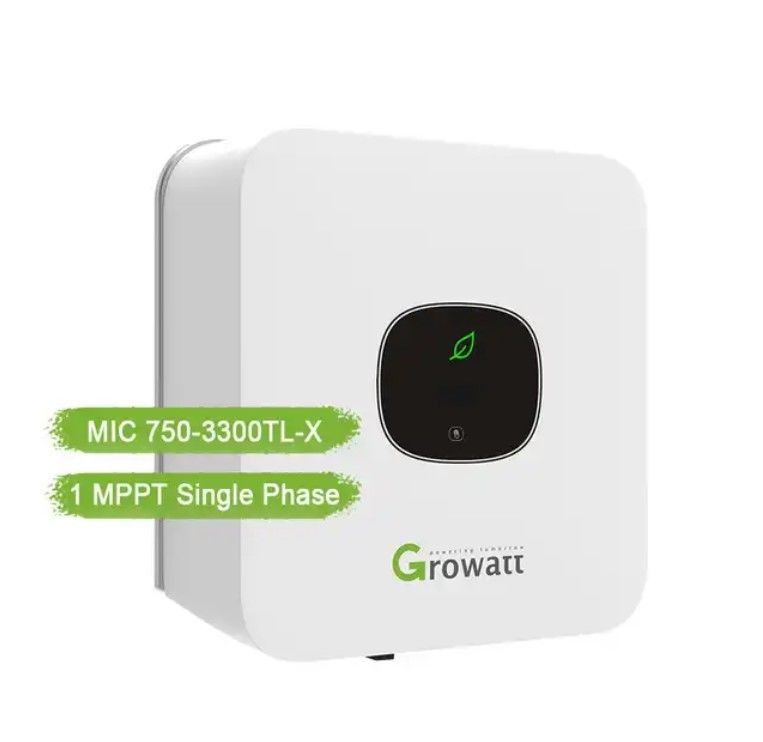

Growatt Inverter Mic 750-3300tl-x |
|
Model Number
|
MIC 750~3300TL-X
|
|
Output Voltage
|
220V/230V/240V
|
|
Output Frequency
|
50Hz/60Hz Auto
|
|
Size
|
274/254/138mm
|
|
Inverter Efficiency
|
0.976
|
|
Output Type
|
Single
|
|
Warranty
|
5 years
|
|
Weight
|
9.1kg
|
|
Display
|
LED/WIFI
|
Relative series parameter
|
Datasheet
|
MIC 750TL-X
|
MIC 1000TL-X
|
MIC 1500TL-X
|
MIC 2000TL-X
|
MIC 2500TL-X
|
MIC 3000TL-X
|
MIC 3300TL-X
|
|
Input data (DC)
|
|||||||
|
Max. recommended PV power
|
1050W
|
1400W
|
2100W
|
2800W
|
3500W
|
4200W
|
4290W
|
| (for module STC) | |||||||
|
Max. DC voltage
|
500V
|
500V
|
500V
|
500V
|
550V
|
550V
|
550V
|
|
Start voltage
|
50V
|
50V
|
50V
|
50V
|
80V
|
80V
|
80V
|
|
Nominal voltage
|
120V
|
180V
|
250V
|
360V
|
360V
|
360V
|
360V
|
|
MPP voltage range
|
50V-500V
|
50V-500V
|
50V-500V
|
50V-500V
|
65V-550V
|
65V-550V
|
65V-550V
|
|
No. of MPP trackers
|
1
|
||||||
|
No. of PV strings per MPP tracker
|
1
|
||||||
|
Max. input current per MPP tracker
|
13A
|
||||||
|
Max. short-circuit current per MPP tracker
|
16A
|
||||||
|
Output data (AC)
|
|||||||
|
AC nominal power
|
750W
|
1000W
|
1500W
|
2000W
|
2500W
|
3000W
|
3300W
|
|
Max. AC apparent power
|
750VA
|
1000VA
|
1500VA
|
2000VA
|
2500VA
|
3000VA
|
3300VA
|
|
Nominal AC voltage(range*)
|
230V (180-280V)
|
||||||
|
AC grid frequency
|
50/60 Hz (45-55Hz/55-65 Hz)
|
||||||
|
Max. output current
|
3.6A
|
4.8A
|
7.1A
|
9.5A
|
11.9A
|
14.3A
|
14.3A
|
|
Adjustable power factor
|
0.8leading…0.8lagging
|
||||||
|
THDi
|
<3%
|
||||||
|
AC grid connection type
|
Single phase
|
||||||
|
Efficiency
|
|||||||
|
Max.efficiency
|
97.40%
|
97.40%
|
97.40%
|
97.40%
|
97.60%
|
97.60%
|
97.60%
|
|
European efficiency
|
96.50%
|
96.50%
|
97.00%
|
97.00%
|
97.00%
|
97.10%
|
97.10%
|
|
MPPT efficiency
|
99.90%
|
||||||
|
Protection devices
|
|||||||
|
DC reverse polarity protection
|
Yes
|
||||||
|
DC switch
|
Yes
|
||||||
|
AC/DC surge protection
|
Type III / Type III
|
||||||
|
Insulation resistance monitoring
|
Yes
|
||||||
|
AC short-circuit protection
|
Yes
|
||||||
|
Ground fault monitoring
|
Yes
|
||||||
|
Grid monitoring
|
Yes
|
||||||
|
Anti-islanding protection
|
Yes
|
||||||
|
Residual-current monitoring unit
|
Yes
|
||||||
|
AFCI protection
|
Optional
|
||||||
|
General data
|
|||||||
|
Dimensions (W / H / D)
|
274/254/138mm
|
||||||
|
Weight
|
6kg
|
6kg
|
6kg
|
6kg
|
6.2kg
|
6.2kg
|
6.2kg
|
|
Operating temperature range
|
–25°C ... +60°C
|
||||||
|
Topology
|
Transformerless
|
||||||
|
Cooling
|
Natural convection
|
||||||
|
DC connection
|
H4/MC4(Optional)
|
||||||
|
AC connection
|
Connector
|
||||||
|
Interfaces: RS485 / USB/Wi-Fi/
|
Yes/Yes/Optional/Optional/Optional /Optional
|
||||||
| GPRS/ RF/LAN | |||||||
|
Warranty: 5 years / 10 years
|
Yes /Optional
|
||||||

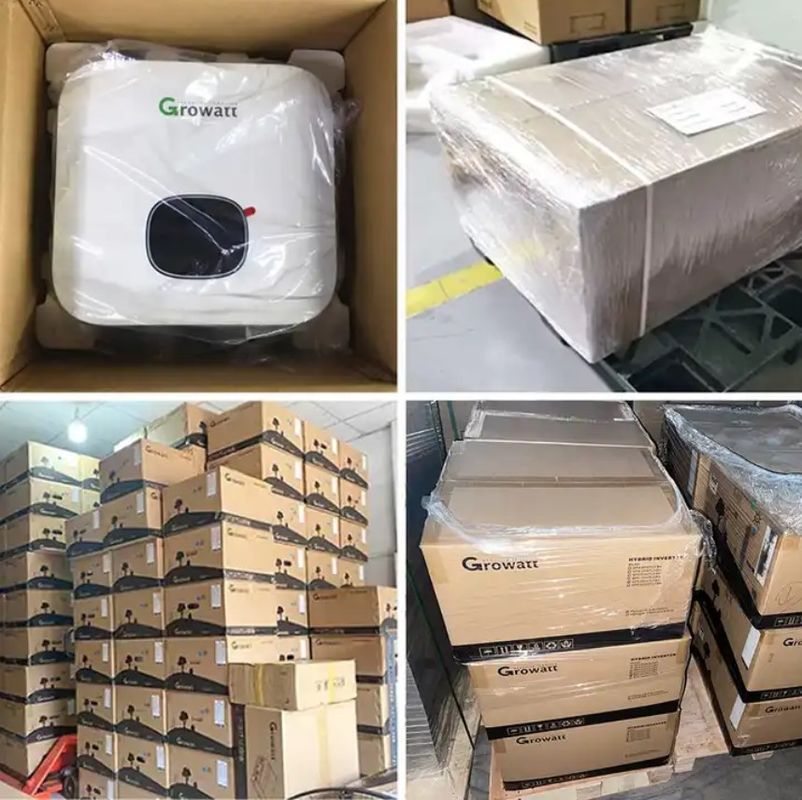

Package

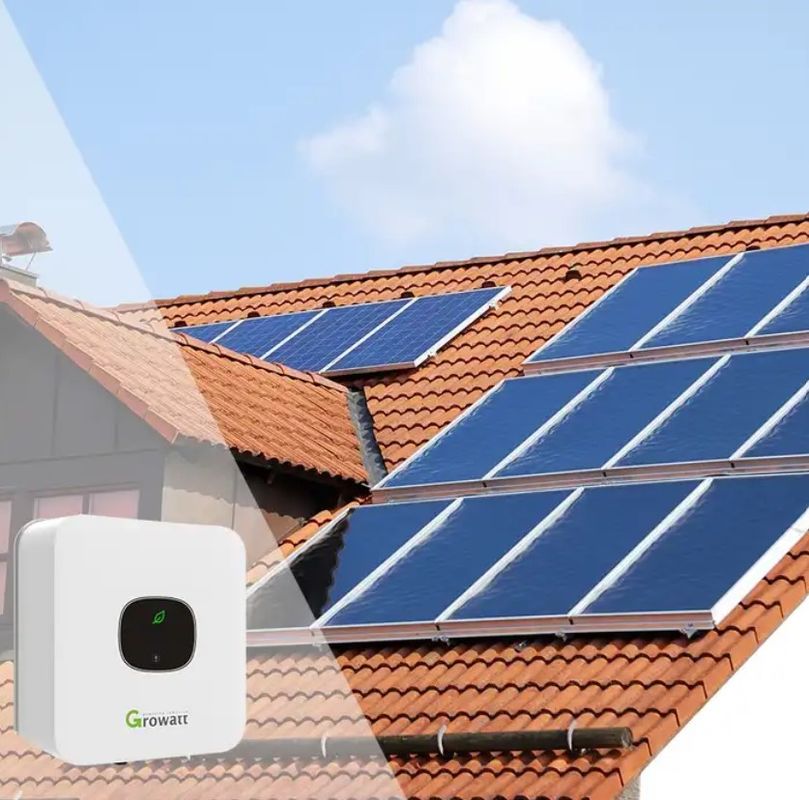

Project case
